Neumann KM184 Small Diaphragm Cardioid Condenser Microphone

Uncolored, Transparent, Versatile

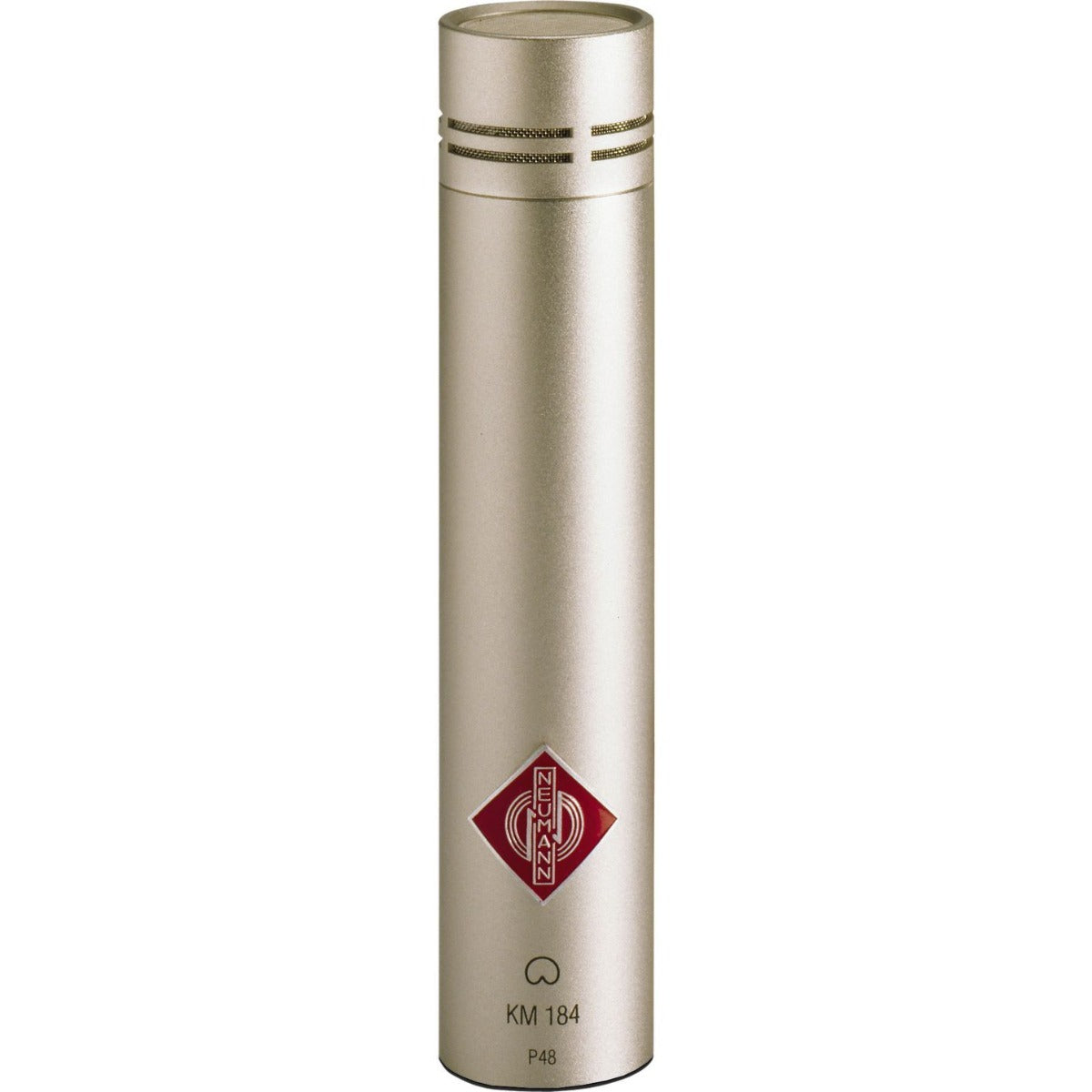

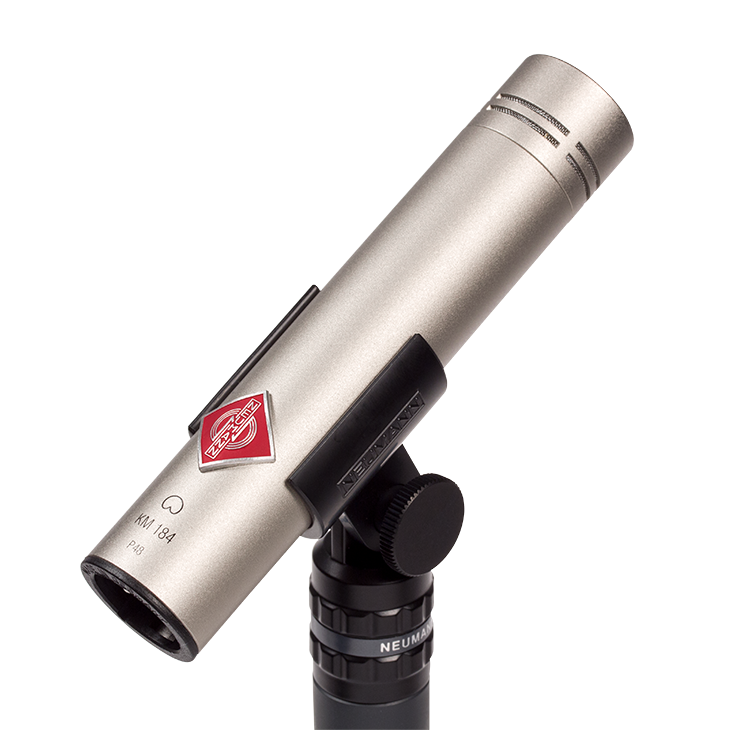

The KM 184 is a state-of-the-art small diaphragm condenser microphone with a uniform, frequency-independent cardioid polar pattern. Its very natural, transparent sound with very low self-noise and high SPL capability have made the KM 184 a worldwide stage and studio standard for many applications ranging from classical piano to heavy metal drums.

Cardioid
Despite its attractive pricing, the KM 184 offers state-of-the-art Neumann engineering. Its cardioid pattern is frequency-independent; rejection of rearward sound (180°) is excellent, even at low frequencies. In practical usage, there is no sound coloration over a wide pickup angle, which is crucial in multi-microphone setups and for precise stereo/surround imaging. The KM 184’s frequency response is very smooth and linear with a slight treble lift around 9 kHz for added brilliance. Its innovative transformerless head amplifier offers a wide dynamic range of 125 dB and is carefully designed to maintain the capsule’s sonic integrity. The KM 184 has a very low self-noise of only 13 dB-A and can handle high sound pressure levels of up to 138 dB free from distortion. Due to its low impedance output stage, the KM 184 can drive long cable runs of up to 300 meters (1000 feet) without transmission losses.

Applications

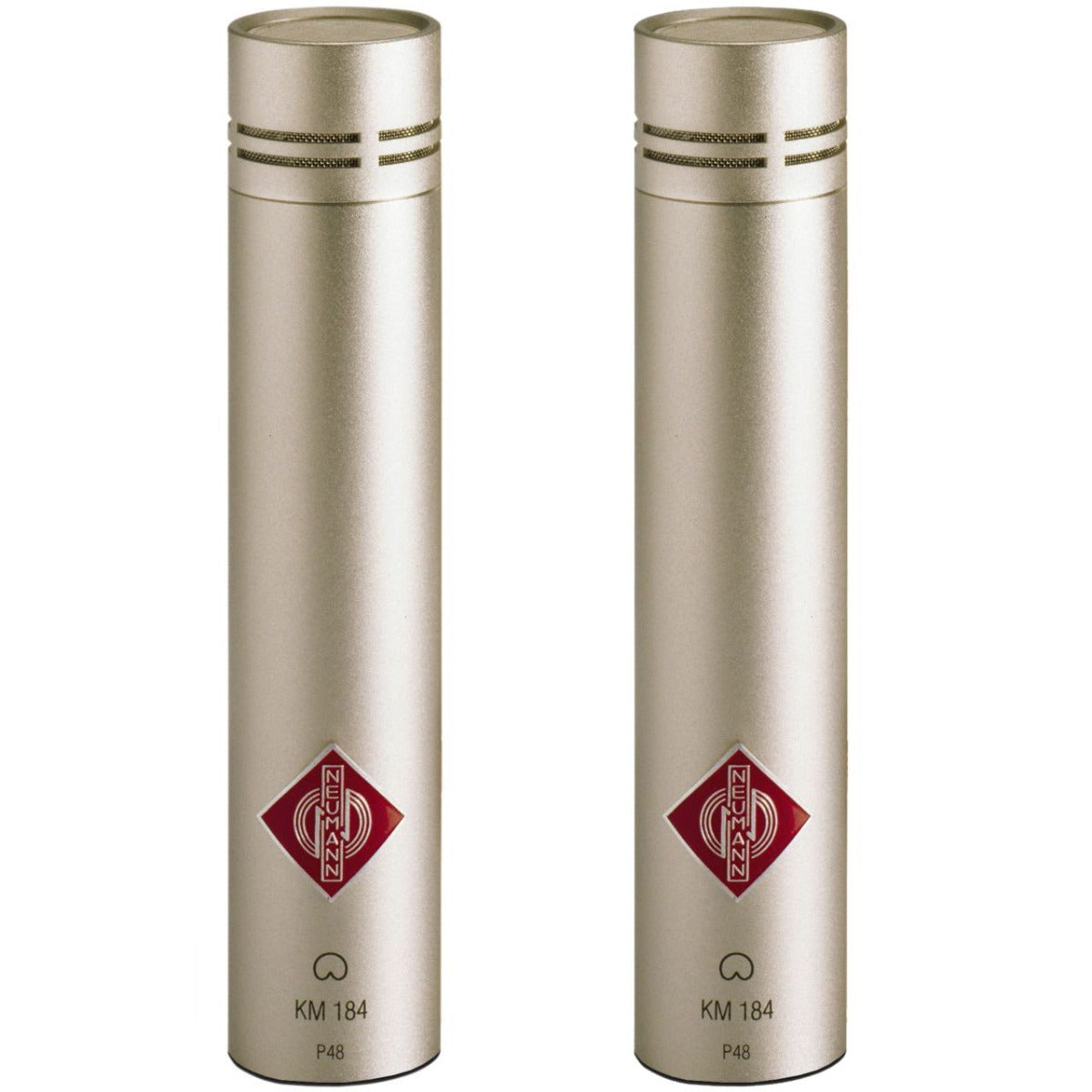

The KM 184 is a universal microphone for studio and stage applications. Its transparent sound makes the KM 184 a superb microphone for acoustic instruments, such as piano, percussion, drums, acoustic guitar, upright bass, violin, cello, woodwinds, and brass. The KM 184 can be used for soloists as well as ensembles. Thanks to its superior off-axis behavior, the KM 184 is an excellent microphone for stereo and surround recording with perfect imaging. Although the KM 184 is not specially optimized for the human voice, it is often used for classical vocals and whenever sonic authenticity is paramount. Due to its small size, the KM 184 is visually unobtrusive and well suited to TV and radio applications.

Neumann KM 184 Condenser Microphone Features:

• Small-diaphragm condenser mic
• Of the "fet 100" series with a transformerless microphone circuit
• Capsule with cardiod pick-up pattern
• Exceptionally low inherent self-noise (16dB A-weighted)
• Exceptionally high overload capacity (up to 138dB SPL before overload)
• Exceptionally clear sound reproduction free of coloration
• Very smooth frequency curves parallel to 0 degrees sound incidence
• 20Hz to 20kHz frequency range
• Equivalent loudness level due to inherent noise: 16dB (DIN/IEC 651 dB-A), 25dB (CCIR 468-3 weighted)
• S/N ratio re:1Pa @ 1kHz, (CCIR 468-3 weighted) 69dB (S/N = 94dB - equiv. noise) A-weighted: 78dB
• Max SPL for less than 0.5% THD: 138dB
• Total dynamic range of the microphone amplifier (Max SPL-self noise): 122dB
• Requires +44V to +52V phantom power
