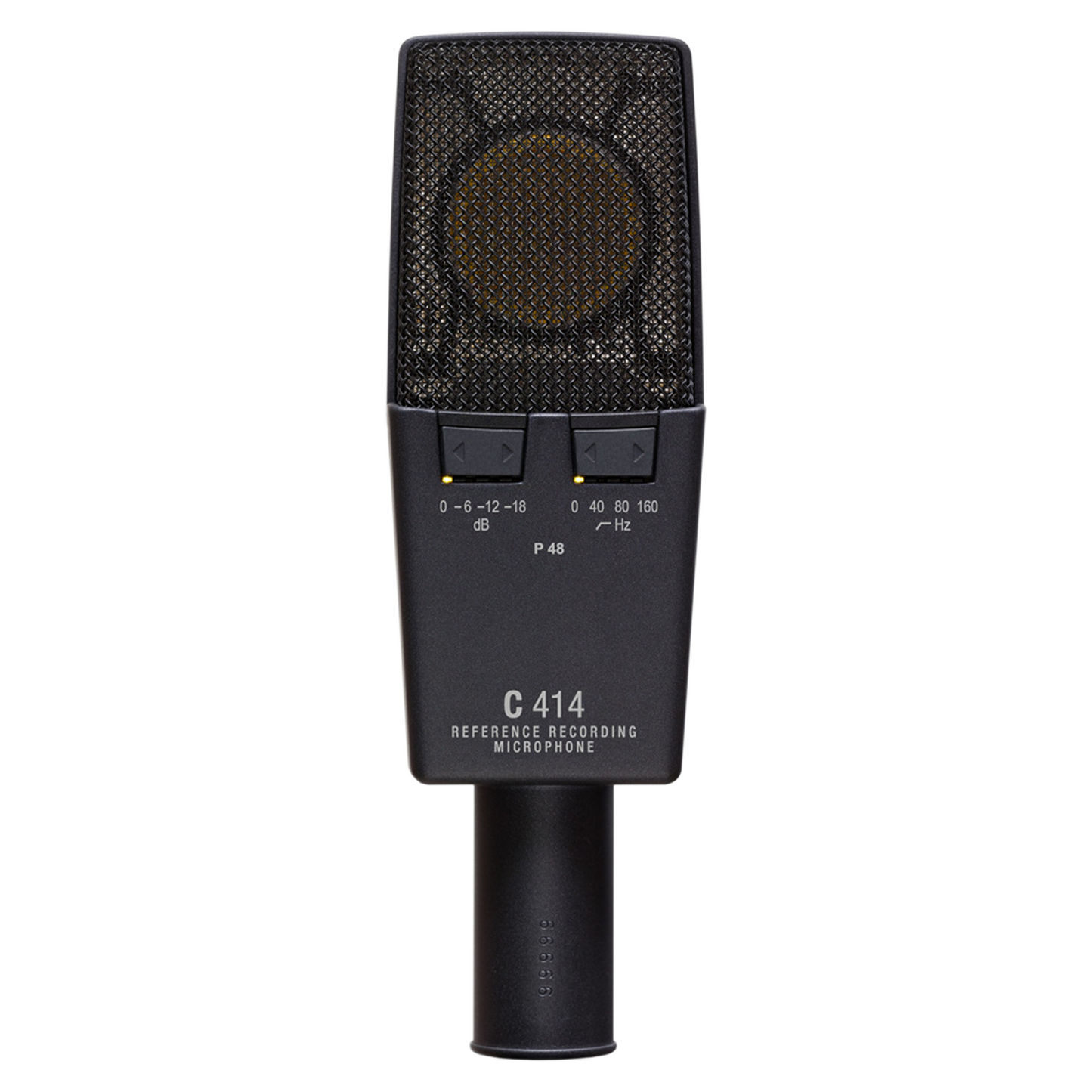

AKG C414 XLS Multi-Pattern Condenser Microphone

The C414 XLS multipattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use.

The C414 XLS maintains the sonic character of the legendary C414 B-ULS, the most popular AKG C414 version since 1971. Engineered for highest linearity and neutral sound, it has been the most versatile large-diaphragm microphone for decades.

AKG C414 XLS Multi-pattern Condenser Microphone Features:

• Omni, wide cardioid, cardioid, hypercardioid, figure eight, and four intermediate pickup patterns
• Lock Mode disables all controls easily for live and installation use
• Incredible Dynamic Range of 152 dB
• Three different bass cut filters and three pre-attenuation levels
• Peak Hold LED detects even shortest overload peaks
• Includes carrying case, pop filter, windscreen, and spider-type shock mount
• Frequency range: 20 to 20 000 Hz
• Sensitivity: 20 mV/Pa (-34 dBV) +/- 0.5 dB
• Max. SPL: 200/400/800/1600 Pa = 140/146/152/158 dB (0/-6/-12/-18 dB) for 0.5% THD
• Equivalent noise level: 6 dB-A (0 dB preattenuation) (IEC 60268-4)
• Signal/noise ratio: 88 dB
• Preattenuation pad: 0 dB, -6 dB, -12 dB, -18 dB, switchable
• Bass cut filter slope: 12 dB/octave at 40 Hz and 80 Hz; 6 dB/octave at 160 Hz
• Impedance: <=200 ohms
• Recommended load impedance: >= 2,200 ohms
• Powering: approximately 4 mA
• Connector: 3-pin XLR to IEC
• Dimensions: 50 x 38 x 160 mm (2.0 x 1.5 x 6.3 in.)
• Net weight: 300g (10.6oz.)
• Requires +48V phantom power
