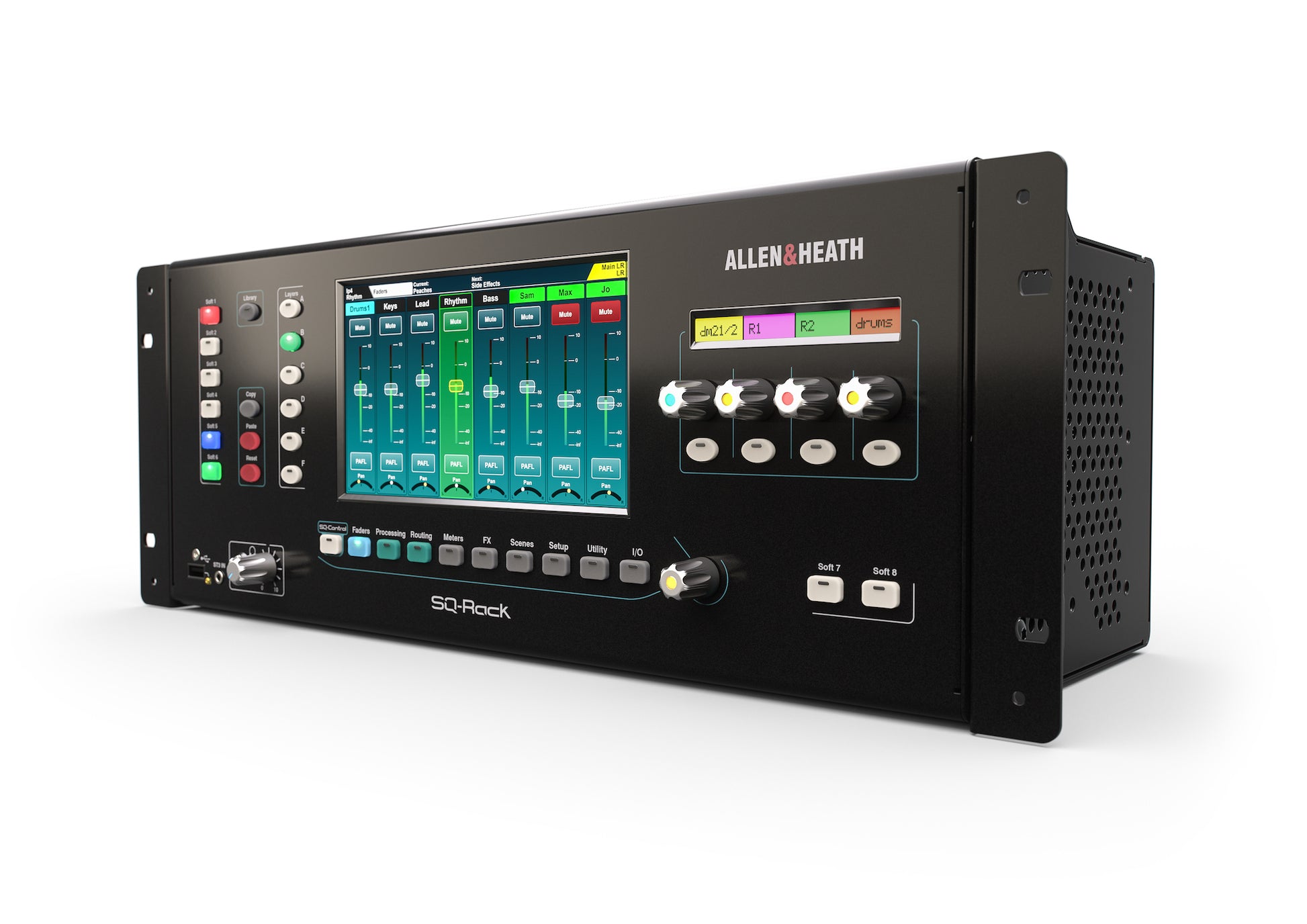

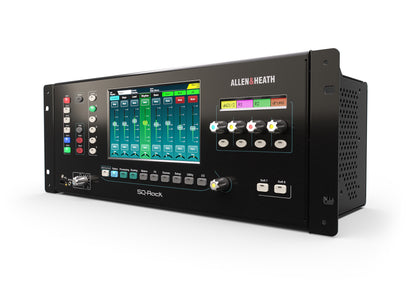

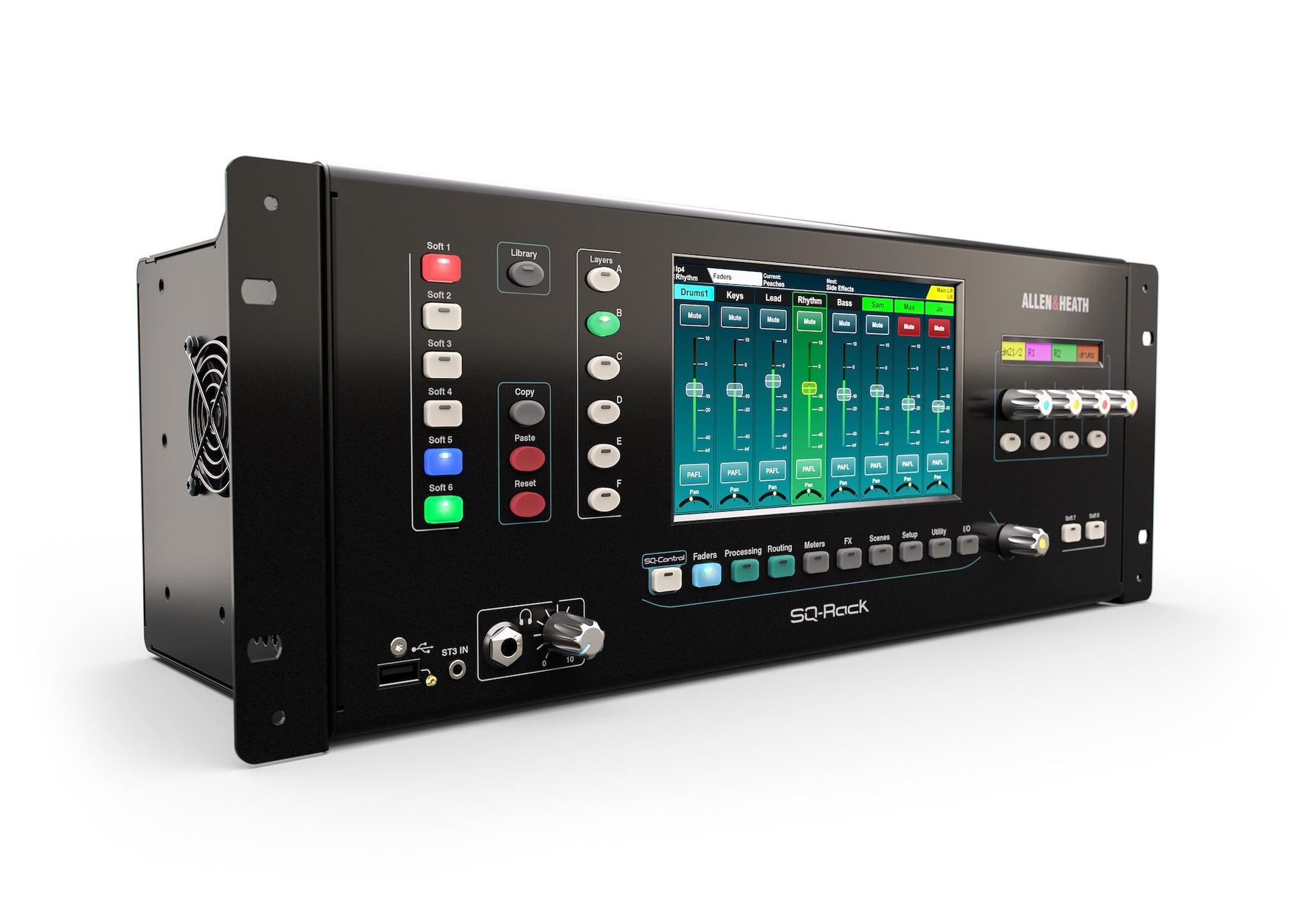

Allen & Heath SQ-RACK Rackmount Mixer

Expected availability: May/June 2025

SQ-Rack packs the power, connectivity, and capability of the SQ into a rack-mountable 4U form factor. Heavily requested as a monitor mixer and for situations and venues without a FOH position, the SQ- Rack also lends itself to installation, studio applications and as a matrix or continuity mixer in larger systems.

Running the same 96kHz XCVI Core as the rest of the SQ range, the SQ-Rack includes all the same features and flexibility, including ultra-low <0.7ms latency, intelligent SLink port for use with Allen & Heath’s ‘Everything I/O’ range of expanders, an I/O Port for Dante/Waves/MADI integration, 48 input channels and 36 output busses, DEEP channel processing options and 8 RackExtra FX engines.

Unique to SQ-Rack, there is a dedicated faders screen in lieu of physical faders along with an SQ- Control screen which provides simplified control for inexperienced users or instant access to key parameters such as mutes, levels and scene recalls.

FEATURES:

• 96kHz XCVI Core

• 48x Input processing channels

• Stereo Main LR Output

• 12x Mixes (Group/Aux, Stereo/Mono)

• 3x Stereo Matrix

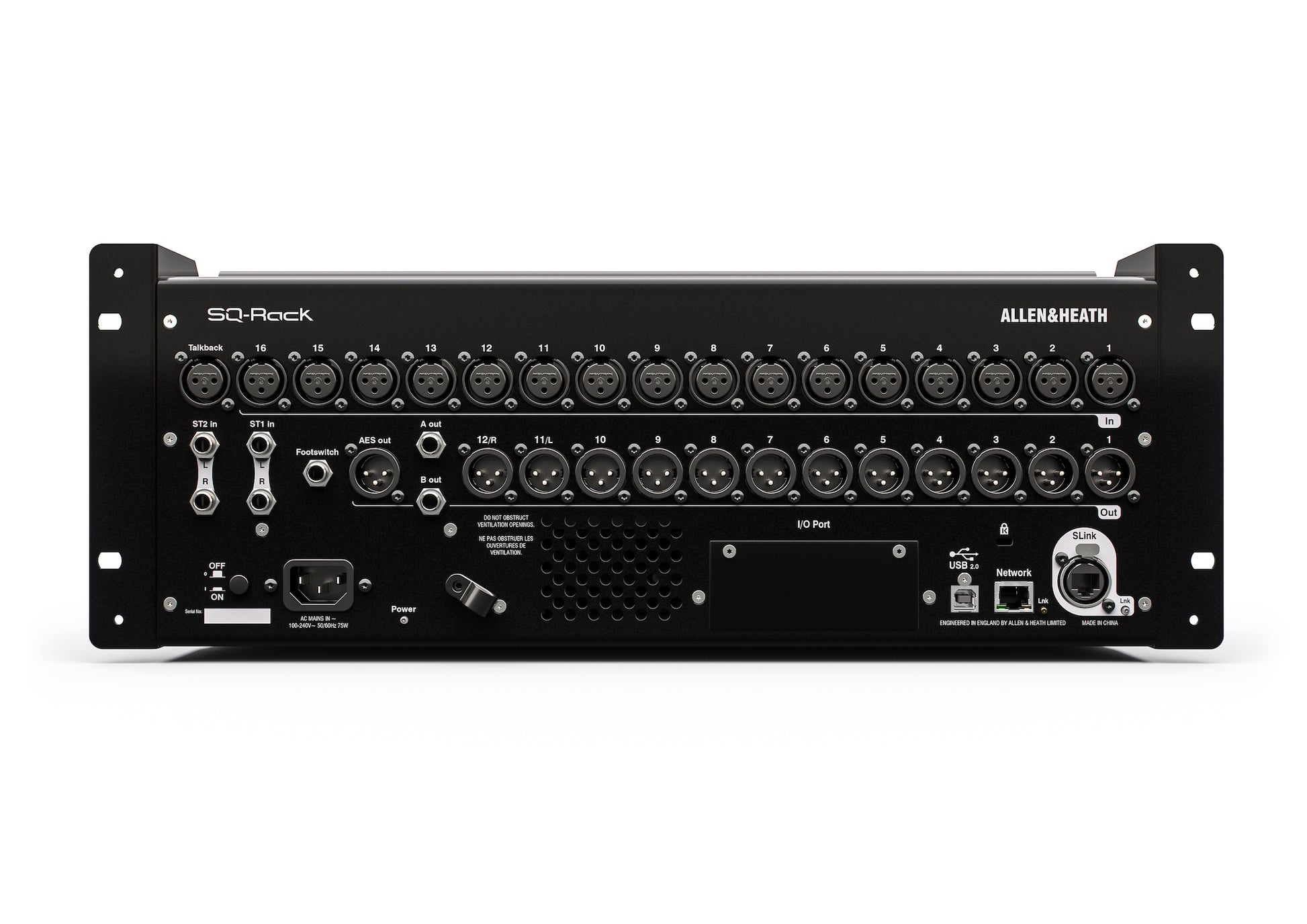

• 17x XLR Mic/Line Input Sockets

• 4x TRS Line Input Sockets

• 1x 3.5mm Stereo Input Socket

• 12x XLR Output Sockets

• 2x TRS Output Sockets

• 1x AES3 Stereo Digital Output Socket

• 128x128 Intelligent SLink Port for Everything I/O expansion and system connections

• 64x64 I/O Port for Option Cards

• Stereo Headphone Output

• 8x FX Engines with dedicated Returns

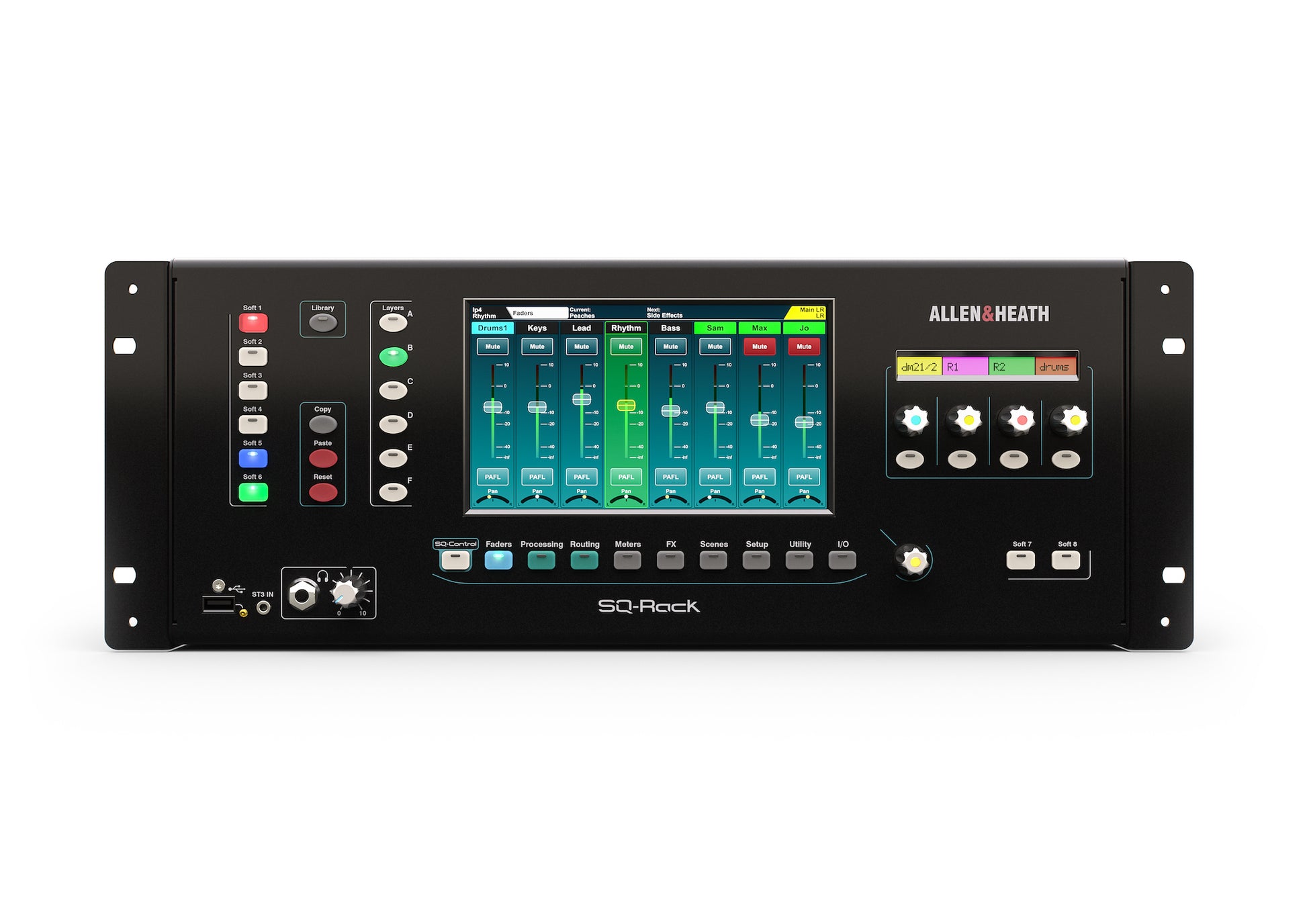

• 7” Capacitive Touchscreen and associated Rotary control

• 8x SoftKeys

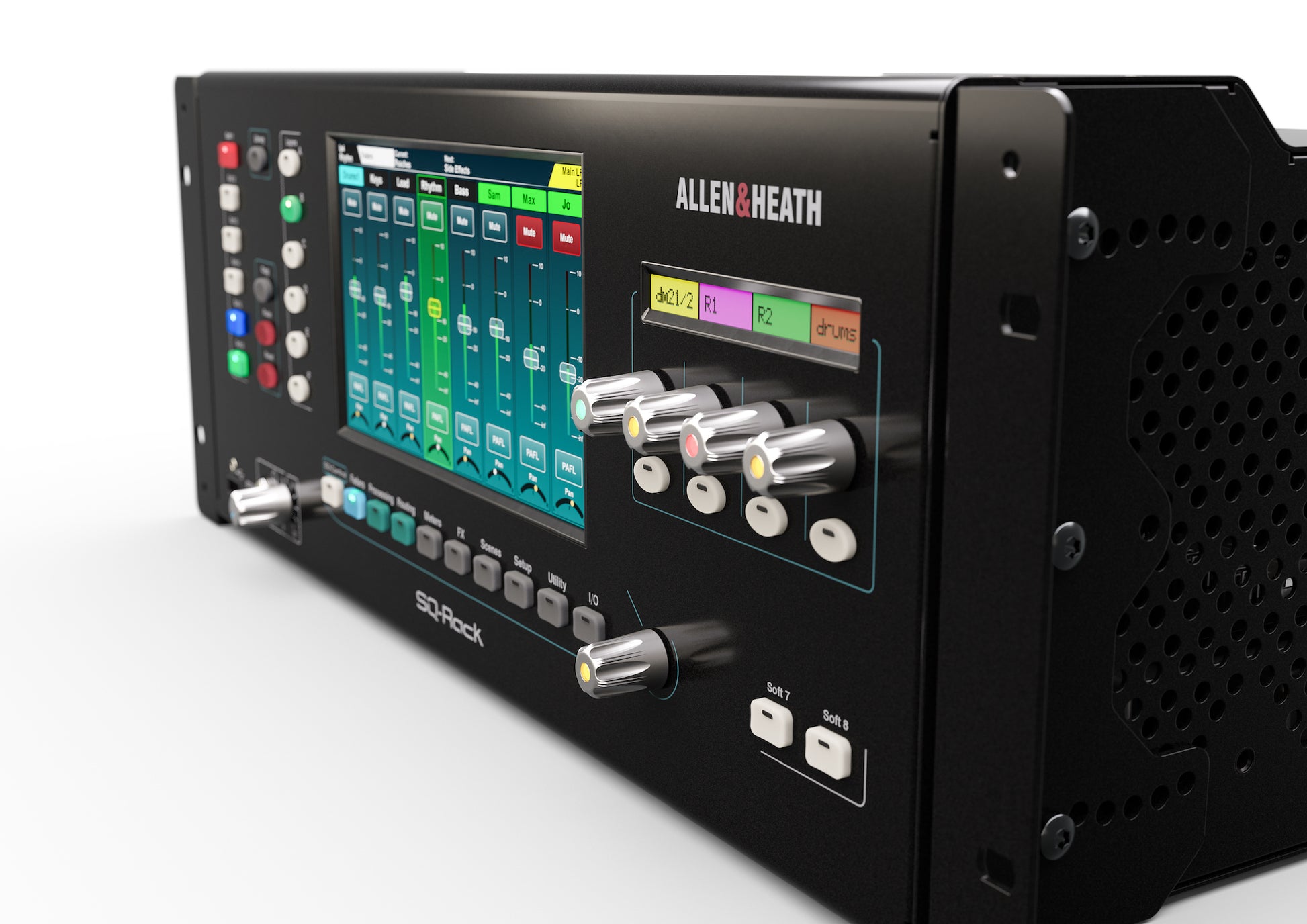

• 4x Soft Rotaries and associated Keys

• SQ-Drive For stereo or multichannel audio record/playback (16x16@96kHz, 32x32@48kHz) and data transfer

• USB-B Audio interface for multichannel record/playback (32x32)

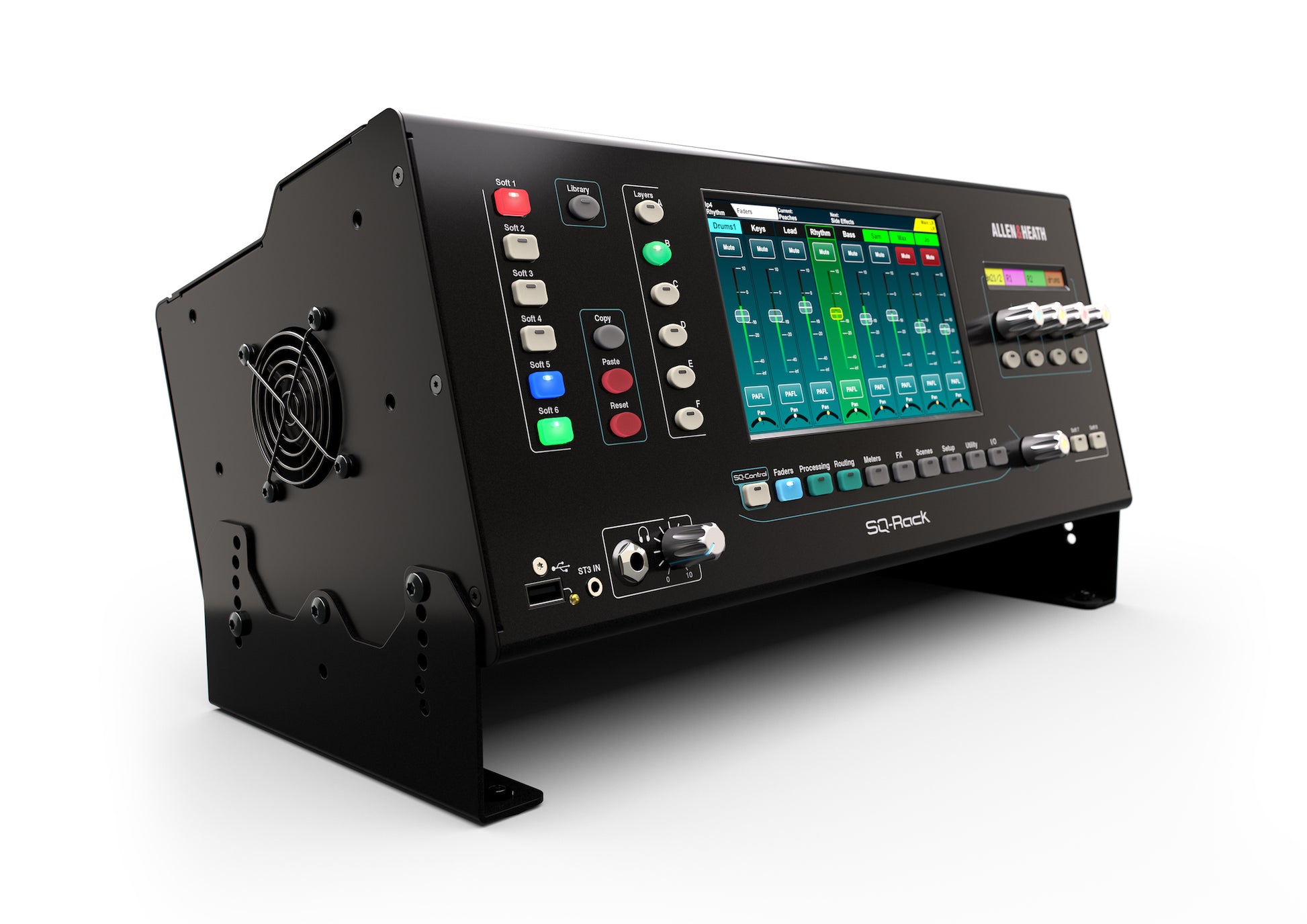

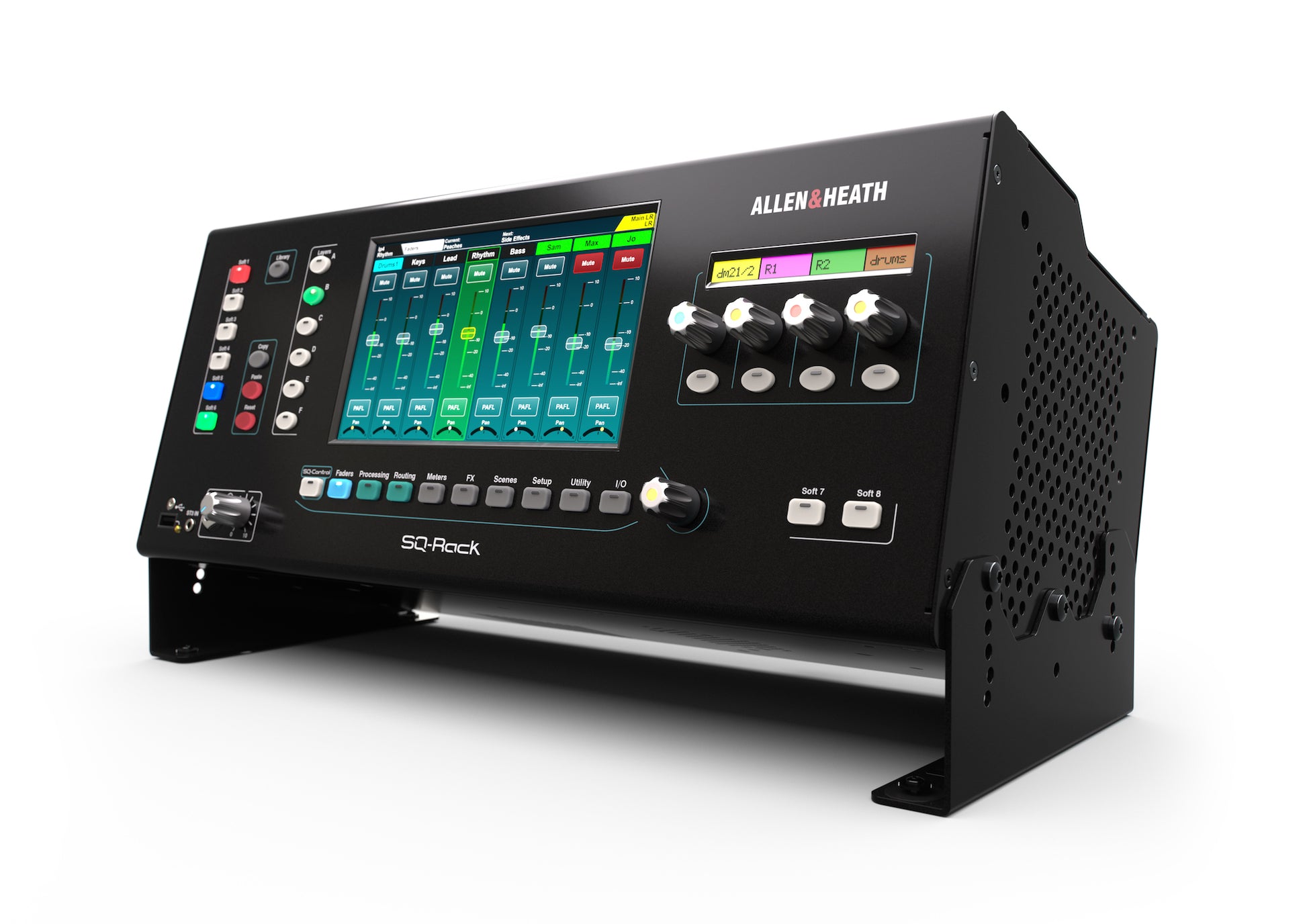

• Configurable single/dual Footswitch Connection • 19” Rack Mountable (multi-position rack ears included)

• IEC Mains Connection with Worldwide PSU • RJ45 Network Socket

• Remote control via free apps – Windows/MacOS/iOS/Android
