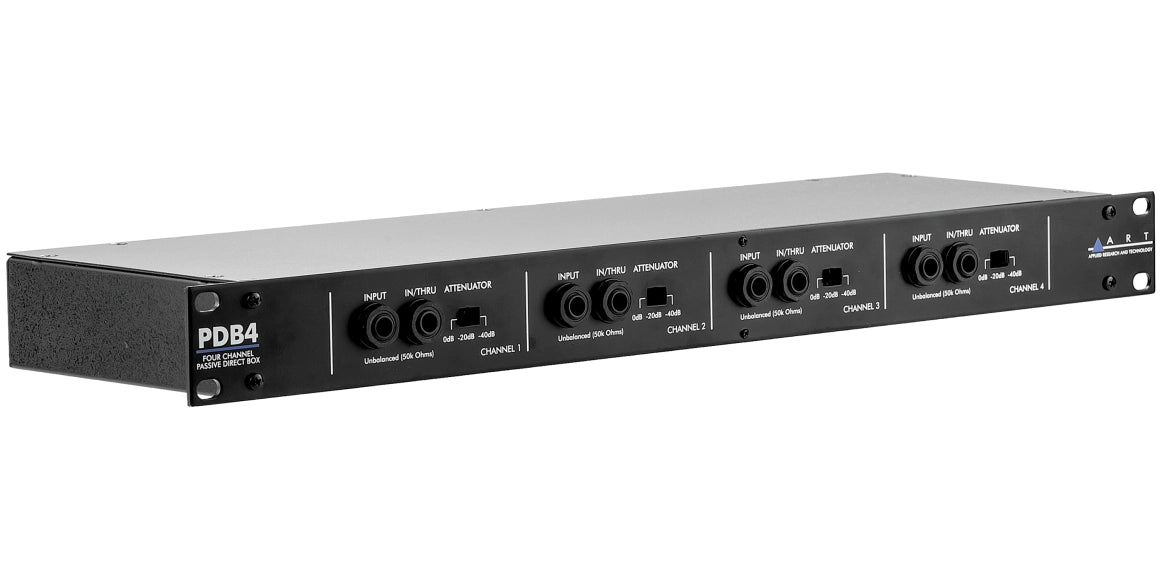

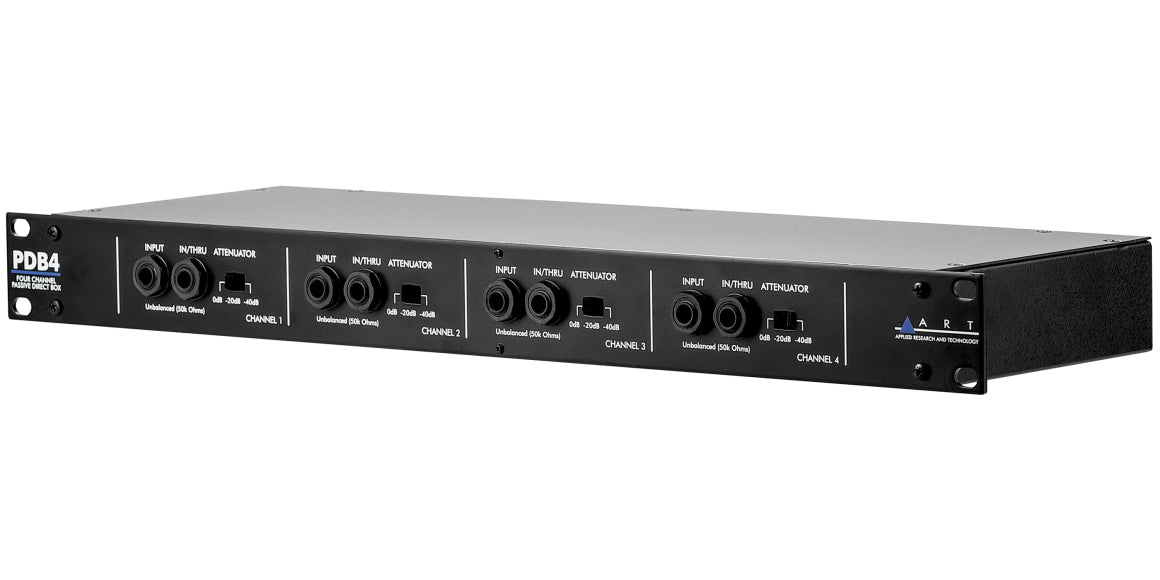

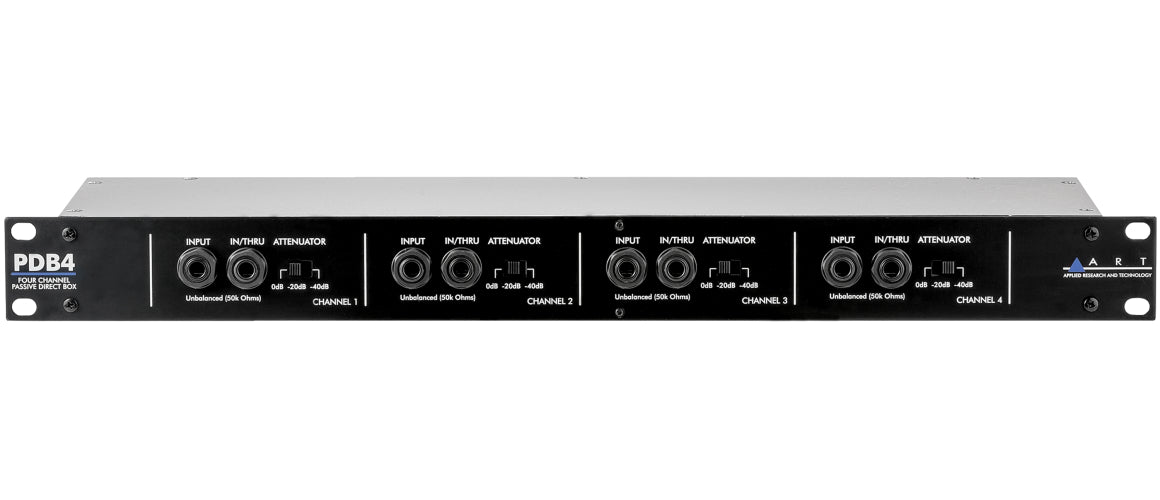

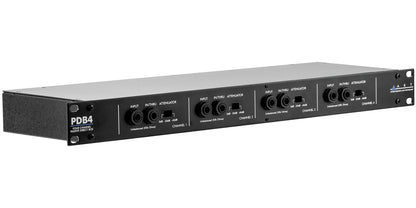

The PDB4 is a four-channel passive DI in a 1U rackmount format. It is ideal for connecting multiple unbalanced instrument, line, or speaker signals to balanced inputs.

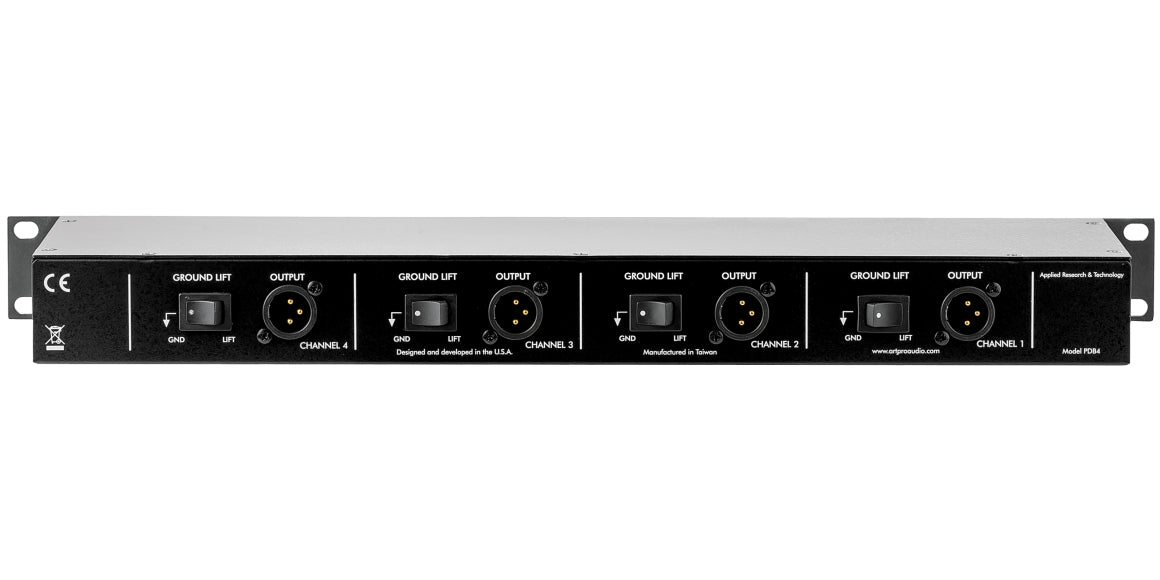

Each input signal is sent to a balanced, transformer-isolated XLR output and a parallel Thru jack, so it can simultaneously be connected to an amplifier on stage.

All channels feature a switchable ground lift to help eliminate hum, and switchable attenuation with up to 40 dB of gain reduction to handle high signal levels.

As a fully passive design, the PDB4 doesn’t require an external power source. Passive DIs are often a great match for powered sources such as synthesizers or guitars and basses with active preamps.

Features

• 4 Independent Channels
• 1/4" TRS Inputs and Thru Connectors
• Transformer-Isolated Balanced XLR Outputs
• Switchable Ground Lift per Channel
• Switchable Attenuation (0 dB, -20 dB, -40 dB) per Channel
• Passive Design - No Power Required
• 1U Rackmount Enclosure
