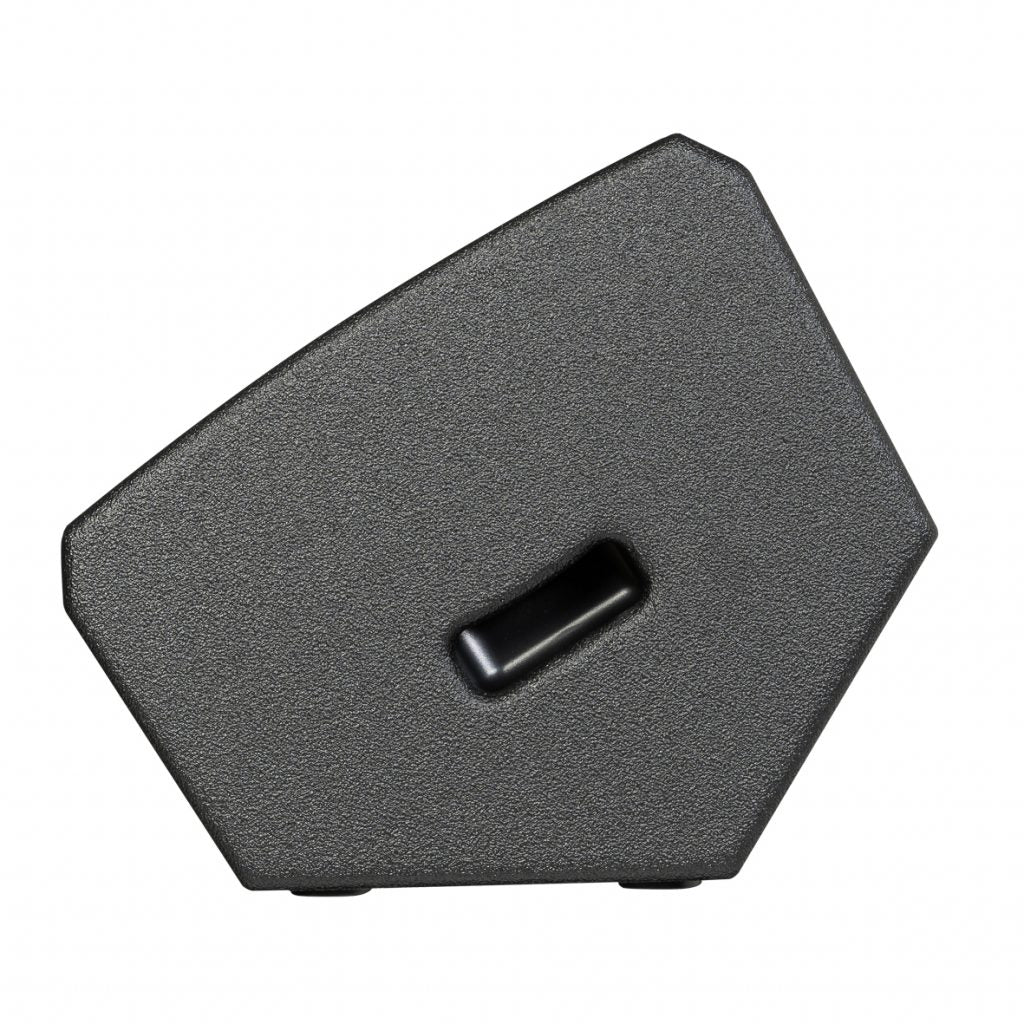

HK Audio LINEAR 9 110 XA 10-inch Active PA Loudspeaker

The LINEAR 9 110 XA is an active multifunctional speaker with an 80° x 60° rotatable, wide-angle horn, optimised for homogeneous near-field dispersion. The multifunctional housing combined with the practical features enhances the range of applications. This ensures that the LINEAR 9 110 XA can be used not only as a stage monitor, but also as a front, side or near-fill addition.

The heart of the LINEAR 9 110 XA is the integrated DSP, which can be controlled via the HK Audio DSP CONTROL software. The software offers the user numerous options for on-site system equalization and adjustment, such as a fully parametric 10-band EQ or group functions. Four DSP presets can be selected directly on the speaker without a PC connected. In addition to three standard presets (Flat, Monitor and Low Cut), a fourth user-designed preset can also be recalled.

The robust birch multiplex enclosure with resistant PU coating protects the LINEAR 9 110 XA not only from wind and the elements but also during transport from the storage to the venue and back again. All LINEAR 9 models are manufactured in Germany.

Features:

• Active multifunctional loudspeaker with network control
• 1 × 10-inch bass-midrange driver with 2.5-inch voice coil
• 1 × 1-inch compression driver with 1.4-inch voice coil
• Rotatable CD horn, 80° × 60° (horizontal × vertical)
• DSP platform with fully parametric 10-band EQ, delay and limiting for un- compromised individual adjustment
• Modern network technology for precise control of all DSP features
• Additional DSP-Out with the full range of features for integration of non- network-compatible loudspeakers
• Direct access to easily selectable presets on the speaker for use as a monitor or system speaker
• High-resolution AD/DA converters with 96 kHz, FIR filtering and low latency of less than 2.6ms
• Multi-purpose housing for use as a FoH or monitor speaker thanks to 30° housing angle
• DuoTilt for 3° or 7° tilt for tripod mounting
• User friendly rigging and mounting options
• Professional, lockable PowerCon and EtherCon connections
• Sturdy enclosure made of birch multiplex with PU coating
• Made in Germany
