Prism Sound LYRA 2 2-in/4-out Audio interface

Based on the Orpheus’ audio path and clock circuitry, Lyra is ideal for those who don’t require a large I/O count, but do demand the highest quality and most transparent AD/DA available.

Reference Grade Compact Audio Interface

2 A/D Analogue Input Channels
4 D/A Analogue Line Output Channels
S/PDIF / ADAT Digital In/Out
AES3 Mode on RCA/Phono
Word Clock Sync I/O
Overkiller, a soft-cap limiter gently absorbs transients and allows signal levels to be pushed to their limits without risk.
Impact Filter, a high-pass filter which roll off below 80Hz which is useful in mic input mode in removing unwanted low-frequency content.
Renowned AD/DA Conversion with ultra-transparent characteristic.
Pristine Pre-Amplification
Prism Sound's unique Verifile process

Dimensions (W x D x H):  285 x 242 x 50mm
Weight: 2.3 kg

System requirements and Specs:
Mac OS X 10.5 Leopard or later| Class-Compliant, Plug-and-play
Windows Vista, 7, 8, 10 or later (32-bit or 64-bit)| Install included ASIO/WDM and UAC2 driver

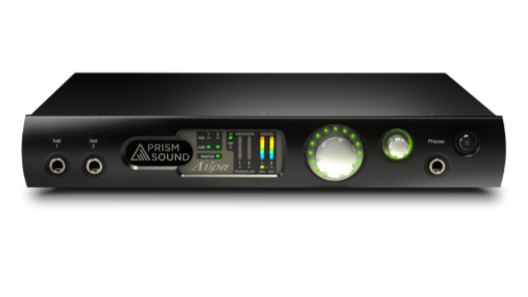

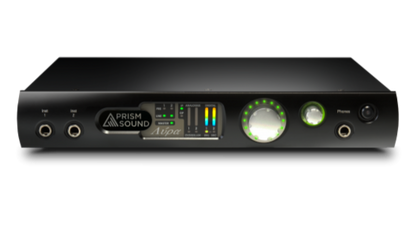

Front Connectors:
2 x Instrument Input (¼” Jack Connector)
1 x Headphone Output (¼” Jack Connector)

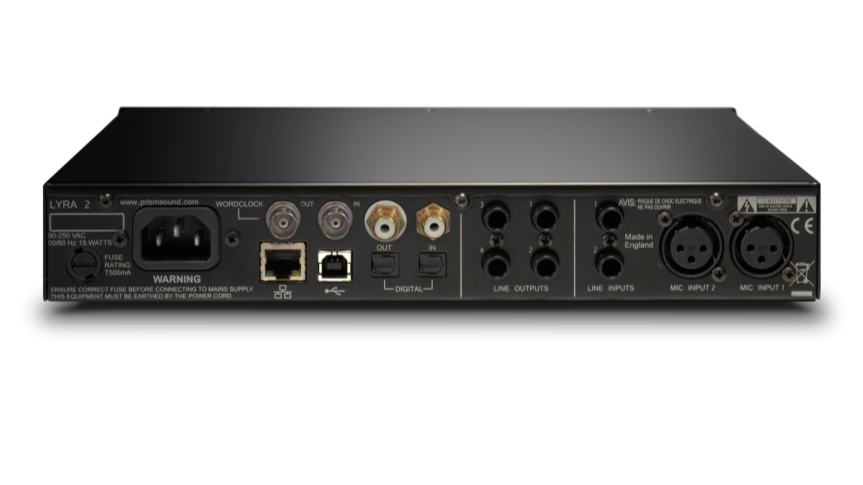

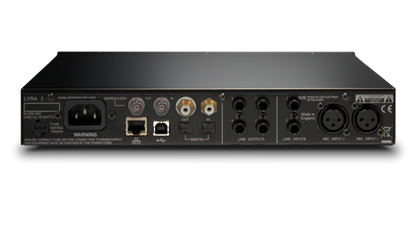

Rear Connectors:
2 x Microphone Input (XLR Connector)
2 x Line Input (¼” Jack Connector)
4 x Line Output (¼” Jack Connector)
1 x S/PDIF / AES3 In/Out (RCA Connector)
1 x TOSLINK S/PDIF / ADAT In/Out (Optical Connector)
1 x Word Clock I/O (BNC Connector)
1 x RJ45 Ethernet Port
1 x USB-B 2.0 Port
1 x IEC port
